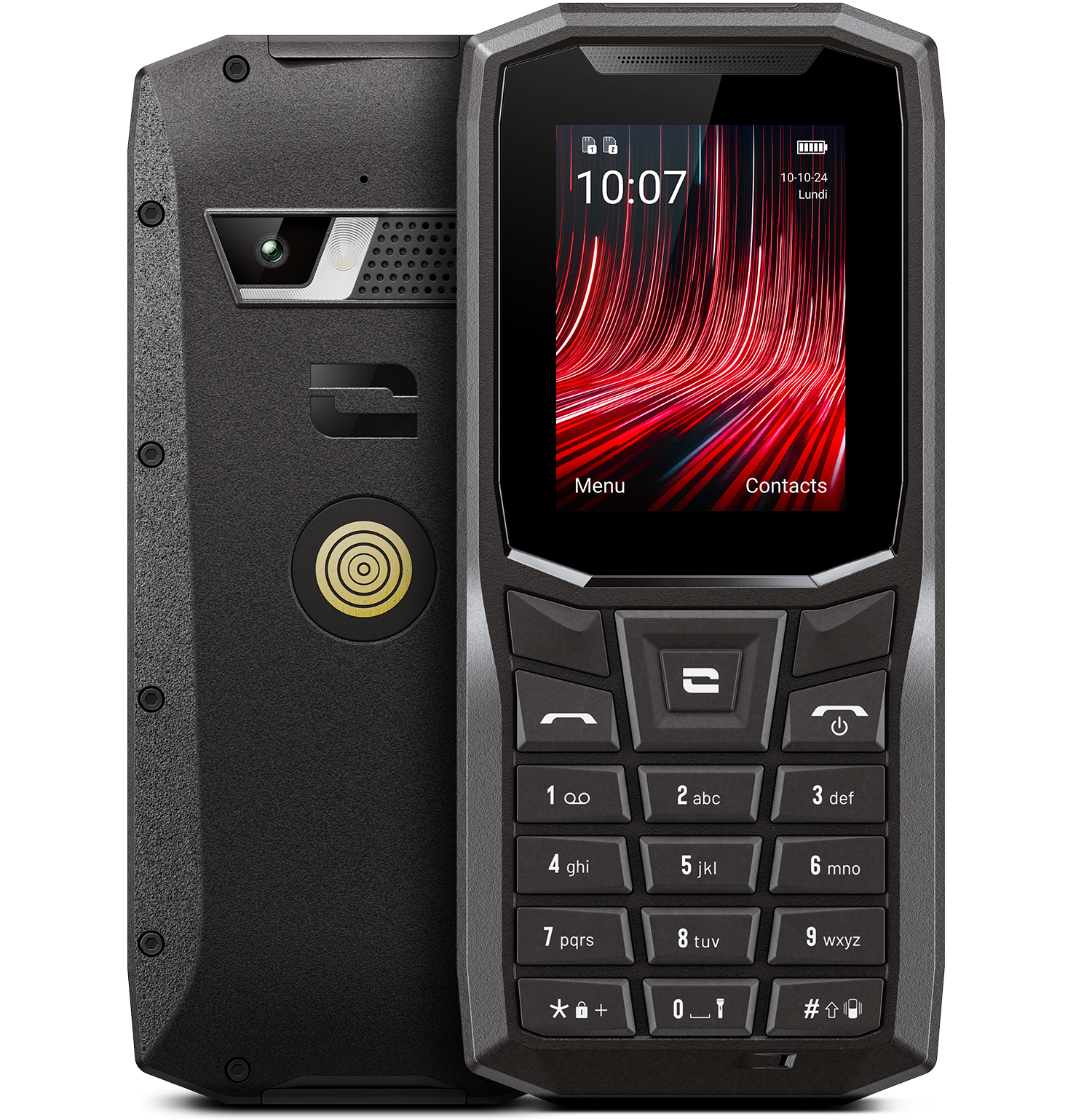

CORE-S5
Durably Reliable. Ultra-Efficient Keypad 4G.
The ultimate rugged communication terminal designed for tradespeople, warehouse staff, security patrols, and industrial operations. Offering physical buttons usable with heavy work gloves, a deafening 100 dB loudspeaker, up to 11 days standby, and IP68 submersible armor backed by a 5-year warranty.
Engineered for Rugged Simplicity
Designed to prioritize what truly matters on site: clear calls, instant physical dialing, long battery life, and complete drop resistance.
Tactile Work-Glove Keypad
Ergonomically spaced, high-relief physical buttons allow flawless number dialing and message sending while wearing thick construction work gloves or in pouring rain.
High-Power 100-Lumen Torch
Equipped with an ultra-bright dedicated 100-lumen emergency LED torch light on the top edge, instantly toggled via a dedicated side key without unlocking the device.
100 dB Loud Speaker
An acoustic cavity tuned to deliver piercing 100 dB ringtones and hands-free speakerphone audio, ensuring clear communication next to running generators and heavy machinery.
4G VoLTE & Wi-Fi Hotspot
Crystal-clear high-definition 4G voice calls with instant internet tethering mode to share mobile data with laptops, tablets, or barcode scanners in the field.
Hardware & Performance Metrics
Essential technical specifications engineered for heavy-duty field deployment.
- Screen Size2.4” QVGA (240 x 320)
- Glass Armor0.8mm Corning® Gorilla® 3
- KeypadBacklit Tactile Rubber Keys
- TorchDedicated 100 Lumen LED
- ProcessorUNISOC T127 High-Efficiency
- Operating SystemMocor RTOS (Instant Boot)
- SIM ArchitectureDual Nano-SIM Slots
- Voice TechVoLTE HD Calling Supported
- Capacity1,800 mAh Removable Li-ion
- Standby TimeUp to 11 Days (264 Hours)
- Talk TimeUp to 12 Hours continuous
- Charging PortReversible USB-C Fast Charge
- Loudspeaker100 dB High-Output Driver
- Headset Port3.5mm Waterproof Jack
- SOS FunctionDedicated Physical Emergency Key
- Torch Output100 Lumens / 20m Beam
- 4G CellularLTE-FDD B1, B3, B7, B8, B20, B28
- Wi-Fi HotspotShare 4G connection via Wi-Fi
- BluetoothBluetooth 5.0 (Hands-free / Audio)
- Storage ExpansionMicroSD slot up to 64 GB

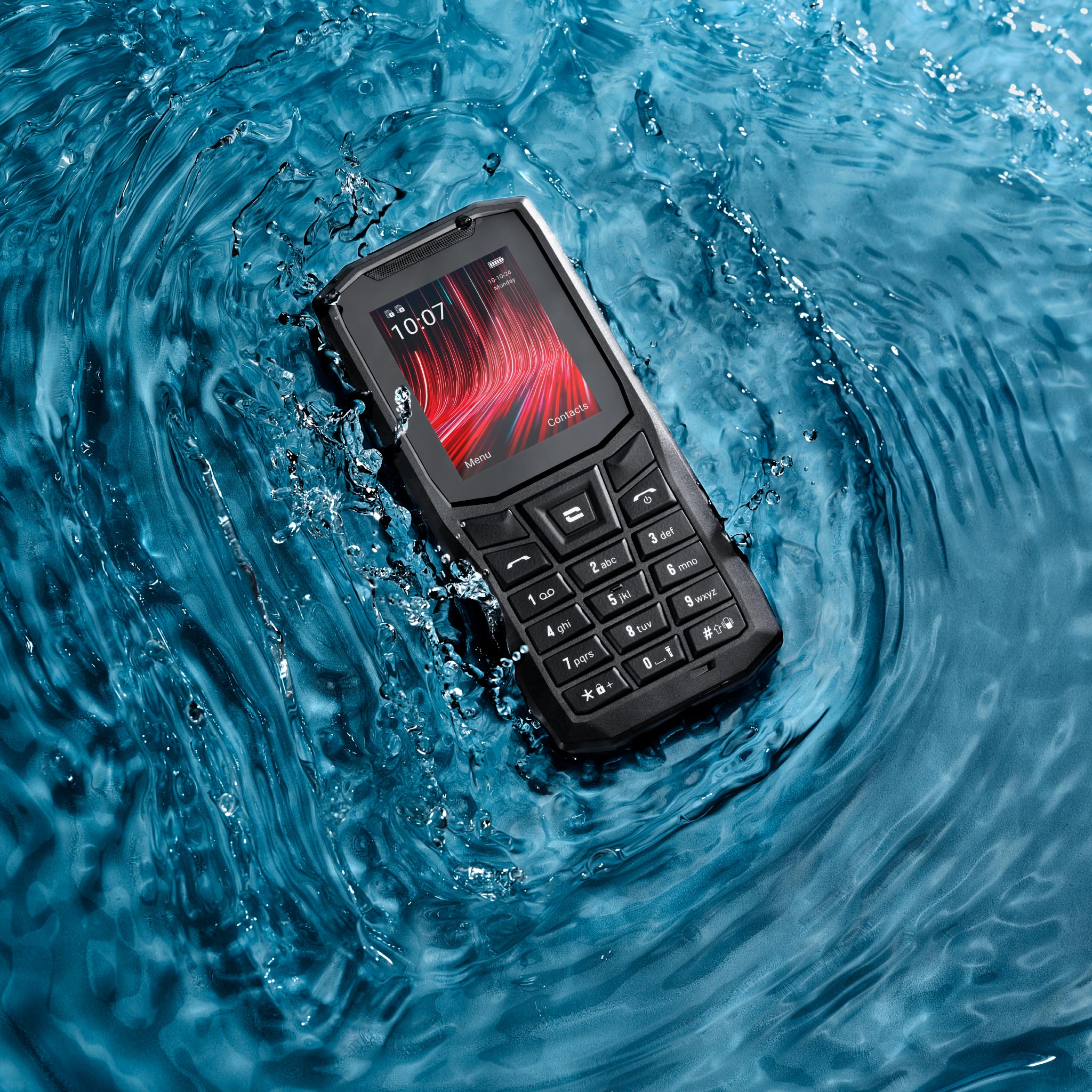

- WaterproofIP68 (2m / 30min)
- Drop Certified6 faces dropped 1.8m chute test
- Temp Range-20°C to +55°C Operating
- Form Factor140 x 62 x 14.4 mm | 146 grams
| Dimensions & Weight | 140 mm x 62 mm x 14.4 mm | 146 grams |
| IP Sealing Standard | IP68 (IEC 60529:2013) - 2m depth for 30 minutes in water |
| Dustproof Rating | IP6X (Purified dry talc <75µm / 2kPa vacuum / 8 hours) |
| Military Standard | MIL-STD 810H & 1.8m concrete drop resistance on all 6 faces |
| SAR Values (EU Standard) | Head: 0.938 W/kg | Body: 1.431 W/kg | Limbs: 1.921 W/kg |
| Fluid Resistance | Resistant to hydroalcoholic gel, soap, 70% ethanol, engine diesel, salt water |
| Manufacturer Guarantee | 5-Year Manufacturer Warranty covering handset and battery |
What’s Included
The CORE-S5 is packaged in 100% recycled eco-designed materials adhering to strict circular economy standards.
CORE-S5 Rugged Mobile Phone
Heavy-duty keypad terminal with reinforced rubberized corners
1,800 mAh Li-ion Removable Battery
High-density battery cell providing up to 11 days of field standby
Heavy-Duty USB-C Cable
Reinforced high-speed charging and computer data sync cable
Frequently Asked Questions
Key questions on keypad durability, battery replacement, and fleet deployment.
Ready to Equip Your Workforce with CORE-S5?
Connect with our enterprise hardware specialists to arrange sample trial units, volume pricing, and pre-provisioned SIM bundles for your field teams.
