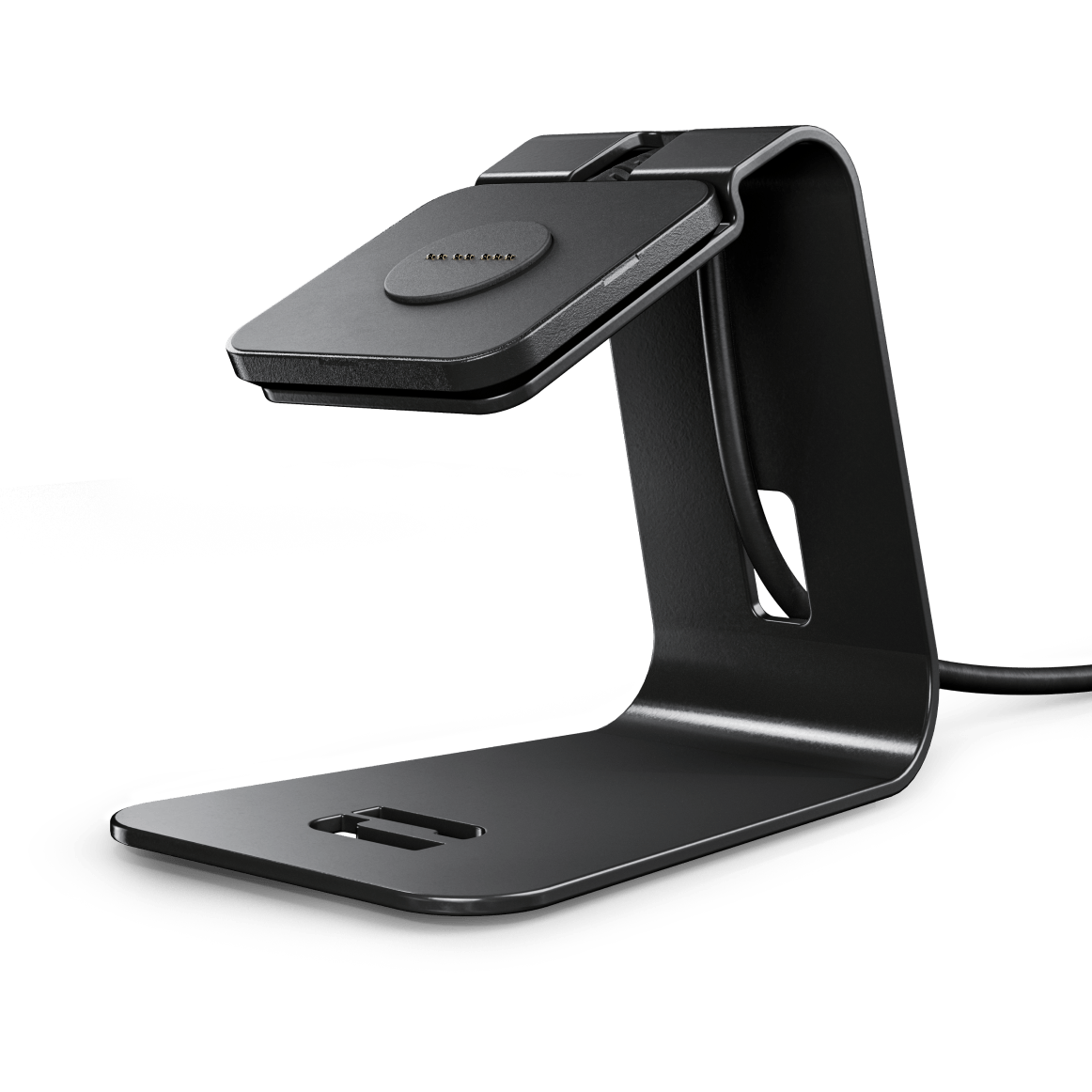

Crosscall X-DOCKe
Magnetic Quick-Lock Fast Charging & Data Synchronisation Station

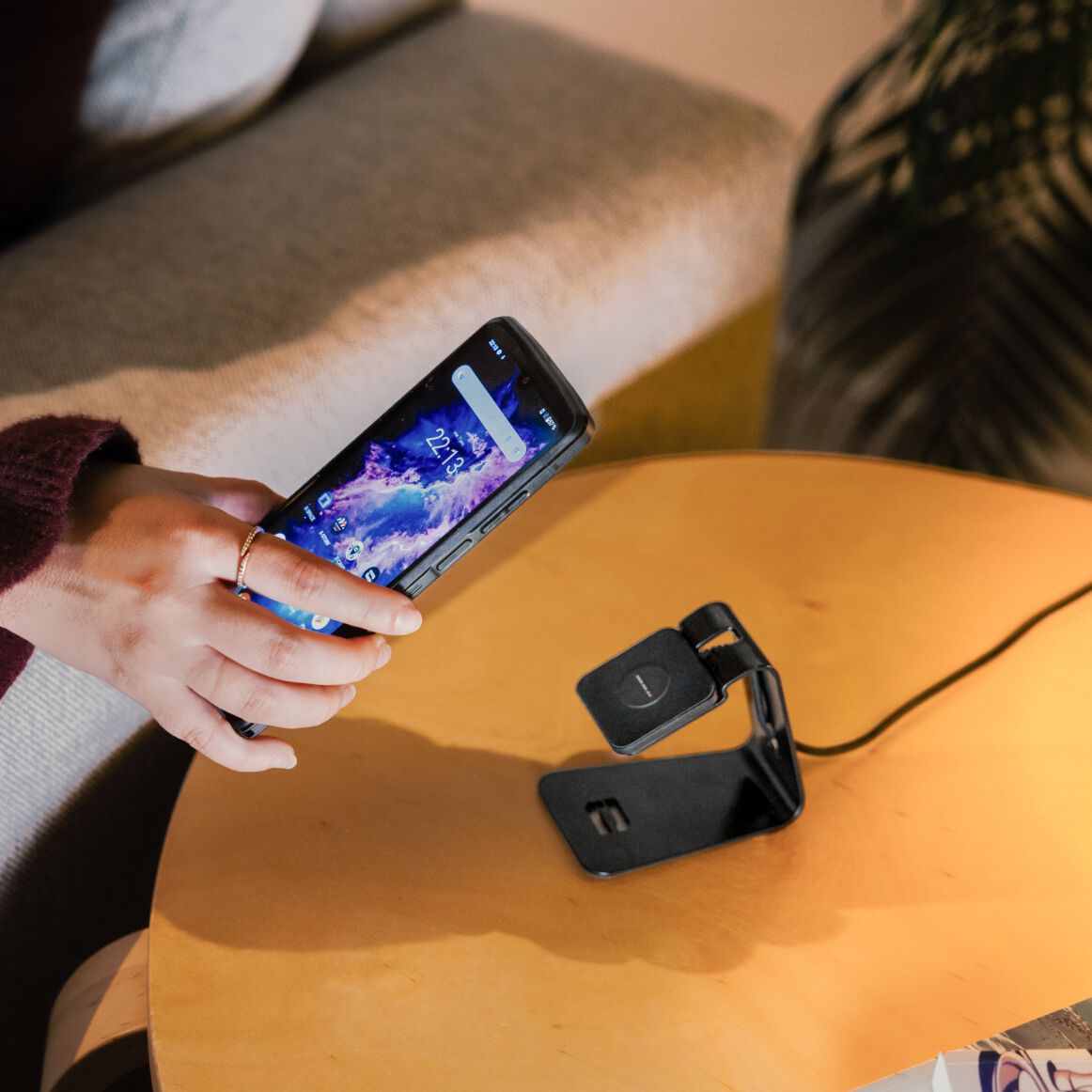

Engineered for high-intensity desk setups, workshops, and fleet dispatch depots. The X-DOCKe locks your Crosscall terminal with 800g of magnetic holding power, delivering 18W fast charging and rapid 480 MB/s data sync in a clean, one-handed motion.
Engineered for Rapid Turnaround & Zero Friction
From desk-based supervision to industrial depot shift turnovers, the X-DOCKe transforms how your workforce recharges and transfers operational data.
X-LINK™ Magnetic Quick-Lock (800g Hold)
Equipped with 5 calibrated neodymium magnets generating 800g of hold force. Simply bring your phone close and it self-aligns and locks securely in a split second without fumbling for cables.
18W Fast Charging & 480 MB/s Sync
Delivers up to 3A current for rapid replenishment between shifts. Simultaneously offload telemetry, field images, and inspection logs directly to your PC at 480 MB/s.
Monoblock Metal & Anti-Corrosion Nickel
Crafted from a solid metal monoblock with chemical nickel surface coating to endure acidic, alkaline, and dusty workshop environments. Drop tested from 1.2m and vertical crush tested 1,000 times.
Washable & Repositionable Base (>150g Grip)
A high-grip micro-suction pad withstands over 150g of horizontal pull, allowing effortless one-handed terminal dismounts. Wash with clean water anytime to restore 100% adhesion.
Comprehensive Hardware Specifications
Precision engineering data and certified ratings for the Crosscall X-DOCKe station.
- Input/Output: 18W Max
- Output Current: Up to 3A
- Fast Charge: Supported
- Cable Included: 1m USB-C to USB-A
- Transfer Speed: 480 MB/s
- PC Connectivity: Plug & Play
- Simultaneous Sync: Charge + Transfer
- Debugging: ADB / MDM Supported
- Magnetic Hold: 800g Pull Strength
- Ergonomic Angle: 26° Ideal Tilt
- Locking System: Self-Centering Quick-Lock
- Removable Pad: Via Clamping Screw
- Structure: Metal Monoblock
- Surface Coating: Anti-Corrosion Nickel
- Drop Resistance: 1.2m on 6 Faces
- Crush Resistance: 800g Vertical (1,000x)
- Horizontal Grip: > 150g Pull Resistance
- Maintenance: Washable with Water
- Repositionable: 100% Reusable
- Surface Compatibility: Wood, Glass, Metal, Stone
- Dimensions: 88.6 x 60.2 x 87.4 mm
- Weight: 126 g
- Operating Temp: 0°C to +55°C
- Storage Temp: -20°C to +60°C
| Dimensions | 88.6 x 60.2 x 87.4 mm |
| Weight | 126 g |
| Input / Output Power | 18W max |
| Output Current | Up to 3A |
| Data Transfer Speed | 480 MB/s |
| Power Cable Included | 1 m long USB-C cable |
| Chassis Structure | Metal monoblock structure |
| Anti-Corrosion Treatment | Nickel treatment for resistance to acidic and basic environments |
| Drop Testing | Drop tests (6 faces, 1.2m concrete) |
| Vertical Crush Resistance | Resistance to 800g vertical crushing force applied 1,000 times (3s each) |
| X-LINK™ Magnetic Pad | 5 magnets, 800g magnet holding strength, 26° ideal tilt |
| Removable Pad | Yes, via integrated clamping screw |
| Non-Slip Base Pad | Withstands horizontal pull of >150g, washable and repositionable |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Manufacturer Warranty | 2 years manufacturer guarantee |
| Supported Functions | Simultaneous fast charge and high-speed data transfer |
What’s in the Box
Every Crosscall X-DOCKe ships fully equipped for immediate desktop integration with heavy-duty cables and mounting accessories.
Crosscall X-DOCKe Monoblock Station
Heavy-duty metal charging base with integrated 5-magnet X-LINK™ pad
1-Metre Heavy-Duty USB-C to USB-A Cable
Reinforced high-speed charging and computer data sync cable
Repositionable Micro-Suction Base Pad
Washable non-slip pad withstanding >150g horizontal pull force
Quick Start & Maintenance Instruction Guide
Official enterprise installation guide, warranty card, and care instructions
Compatible Enterprise Devices
The X-DOCKe fast-charging station works seamlessly with all Crosscall devices featuring the built-in magnetic X-LINK™ system.
CORE-M6
The artisan 5G flagship with 80h battery, 102.5dB speaker, IP68/IP69K sealing, and 5-year enterprise warranty.
Explore CORE-M6
STELLAR-X5s
Ultra-slim IP68 rugged 5G smartphone with Sony 50MP sensor, X-SPACE desktop mode, and AER certification.
Explore STELLAR-X5s
CORE-S5
Ultra-compact keypad phone with 100dB speaker, 11-day standby, IP68 waterproofing, and glove-friendly keys.
Explore CORE-S5Frequently Asked Questions
Everything you need to know about implementing the X-DOCKe across your fleet.
Ready to Equip Your Desks & Depots with X-DOCKe?
Connect with our enterprise hardware specialists to arrange sample evaluation units, multi-dock volume discounts, and complete fleet deployment.
